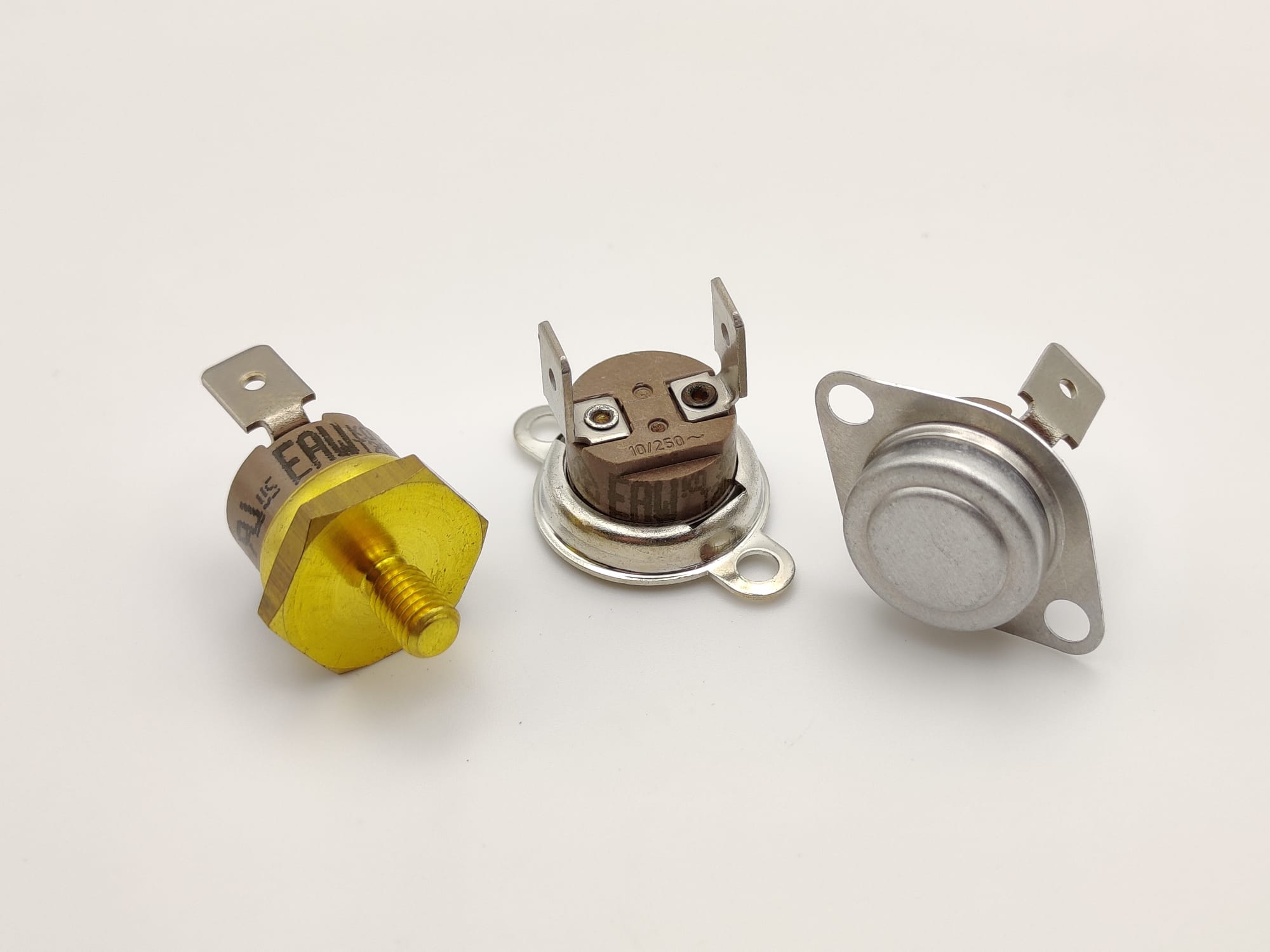

EAW KO & KS 1/2″ Disc Thermostats
EAW KO & KS 1/2″ disc thermostats have snap-action switching mechanisms for accurate and repeatable temperature control of appliances and heaters. We supply both normally-closed (break-on-rise) and normally-open (make-on-rise) contact types, with tight tolerances and narrow (custom) temperature differentials readily available.
Using a T200-rated plastic housing means that temperature set-points from -20°C to +190°C are available, with tolerances down to ±3K and differentials as small as 8K. This ensures accurate control and minmum energy use when switching electrical heater loads.
The KO & KS series controls can be supplied with various push-on terminal types (6.3mm, 4.8mm or 2.8mm), solder tabs, weld tabs and screw/nut options. Numerous surface flanges and through-hole mounting options make this a very flexible range of 1/2″disc thermostats.
Applications
- Heating appliances and heating elements
- Domestic appliances and gas boilers
- Coffee machines & hot-water boilers
- Industrial temperature protection
Features
- Range -20°C/+190°C (T200 rated housing)
- Normally-closed or normally-open contact operation
- Switch loads up to 16A/250VAC
- Gold-plated contact versions (pilot light circuits)
- VDE and UL approvals
